DC-UPS

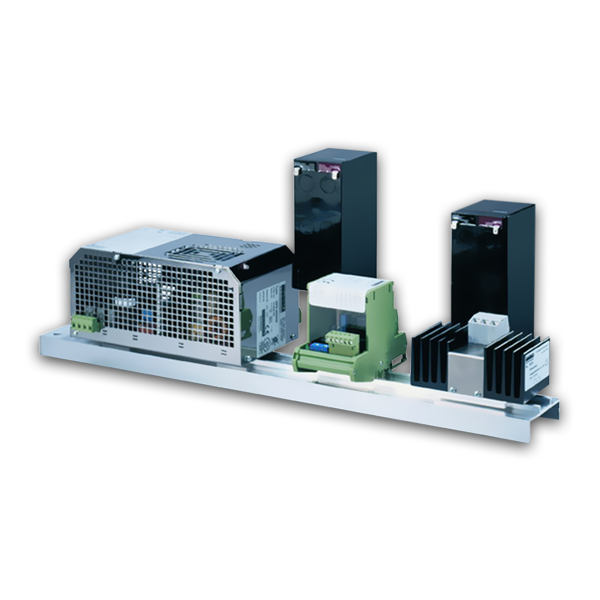

DC UPS SYSTEMS FOR MOUNTING ON DIN RAILS OR MOUNTING PLATE SERIES UNGM
Modular uninterruptible 24V power supply system consisting of stabilized power supply unit series EPN or DPN, decoupling diode, deep discharge protection with signaling and battery pack.
FEATURES
• Stabilized 24V output voltage
• Deep discharge protection and signaling
• Can be connected in parallel for increased power or redundancy
• Modular configurable
APPLICATIONS
Industrial control systems (PLC), (light/alarm systems)

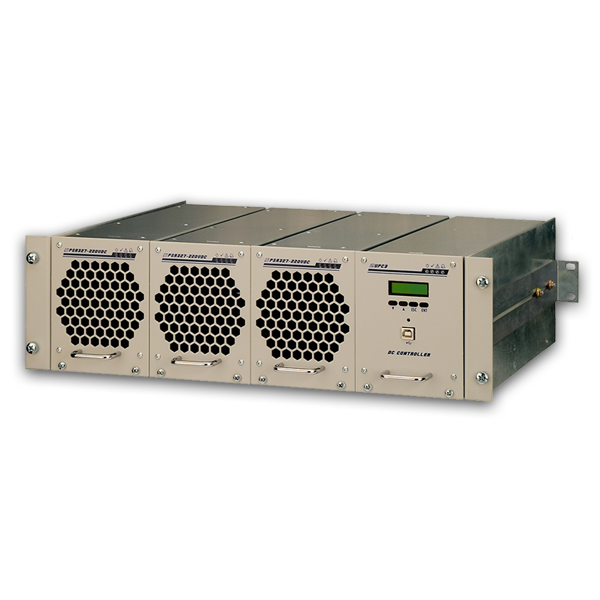

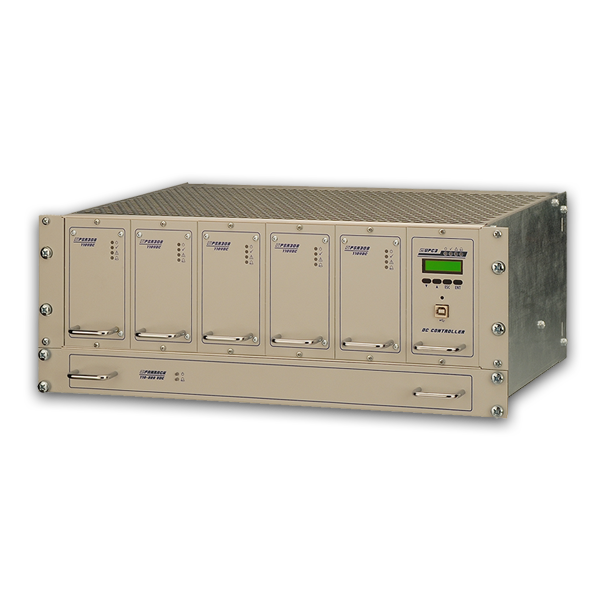

MODULAR DC-UPS SERIES UPSR IN 19″-RACK MOUNTING TECHNOLOGY
Depending on the expansion stage, the DC UPS system consists of one to max. 6 charging rectifier modules in a 19″ subrack, which supply the loads and charge the batteries at the same time. All parameters and errors are shown in plain text on the display via the UPC35 DC monitoring unit. An SNMP adapter is also available for remote signaling.
FEATURES
• Stabilized, secured output voltage
• High power density
• "Hot-plug-in" capable plug-in technology
• Input overvoltage protection
• Wide input voltage range
• Wide range of available output voltages
• Integrated decoupling from the DC bus
• CAN bus interface
• Charging characteristic for Pb and NiCd batteries available
APPLICATIONS
Industrial control systems (PLC), protection of safety equipment, emergency shutdowns, telecommunications (radio, telephone), emergency lighting.

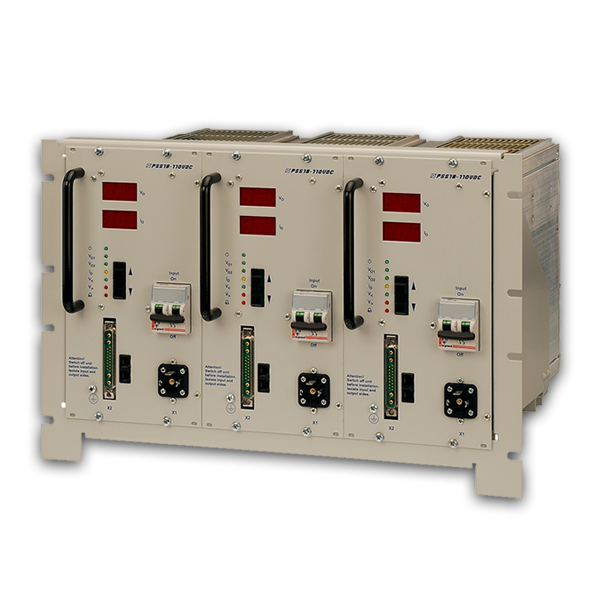

MODULAR DC-UPS SERIES UPSS IN 19″-RACK MOUNTING TECHNOLOGY
All device parameters can be set in a user-friendly way using the buttons on the front while the current value is shown on the digital display. The internal microprocessor monitors and signals the status of the mains voltage, the output parameters and the device temperature.
The devices are equipped with a CAN interface as standard, which can be used for communication and control via our UPC3 control and monitoring unit.
FEATURES
• Stabilized, secured output voltage
• "Hot-plug-in" capable plug-in technology
• Temperature-controlled charging voltage regulation
• Front-side plug connection
• Wide range of available output voltages
• Digital display of output voltage, output current and setting parameters
• CAN bus interface
APPLICATIONS
Industrial control systems (PLC), protection of safety equipment, emergency shutdowns, telecommunications (radio, telephone), emergency lighting.
