DC/DC-Converter modules
240W DC/DC CONVERTER SERIES PSC303
Due to the modular concept and a high scalability the user is able to equip the power supply with additional modules according to his actual power profile. The units are very user-friendly and can be swapped and upgraded during an operation. The power rating of the unit is 240 W .
Up to 6 modules can be integrated in a 19" sub rack with 4U. In systems with high packing rate and limited vertical airflow we recommend to use a fanrack for cooling.
FEATURES
• 1/6x19”, 3U unit
• Wide input voltage range
• Input overvoltage protection
• "Hot-Plug-In" design with backplane connection
• High power density
• CAN-Bus interface
• Integrated output decoupling from the DC bus
• Wide range of available output voltage
480W DC/DC-CONVERTER SERIES PSC305
Due to the modular concept and a high scalability the user is able to equip the power supply with additional modules according to his actual power profile. The units are very user-friendly and can be swapped and upgraded during an operation. The power rating of the unit is 480 W. Up to 6 modules can be integrated in a 19" sub rack with 4U. In systems with high packing rate and limited vertical airflow we recommend to use a fanrack for cooling.
FEATURES
• 1/4x19”, 3U unit
• Wide input voltage range
• Input overvoltage protection
• "Hot-Plug-In" design with backplane connection
• High power density
• CAN-Bus interface
• Integrated output decoupling from the DC bus
• Wide range of available output voltage
1200W DC/DC-CONVERTER SERIES PSC312 HV
The DC/DC converter can be used in all DC applications with or without battery. Due to the modular concept and a high scalability the user is able to equip the power supply with additional modules according to his actual power profile. The units are very user-friendly and can be swapped and upgraded during an operation.
The unit can work in stand-alone mode as well as in connection with a DC controller for remote monitoring. Up to 4 modules can be integrated in a 19" sub rack with 3U.
FEATURES
• 1/4x19”, 3U unit
• Wide input voltage range
• Input overvoltage protection
• "Hot-Plug-In" design with backplane connection
• High power density
• CAN-Bus interface
• Temperature-controlled fan cooling
• Wide range of available output voltages
• Front- to- back airflow with monitored fan

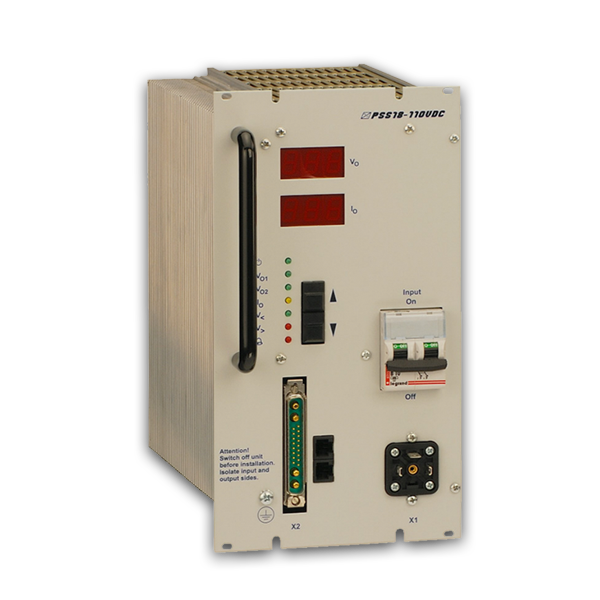

1800W DC/DC-CONVERTER SERIES PSC18
The combination of an active power factor correction unit and a soft-switching DC to DC converter provides a wide input voltage range, high efficiency, small dimensions, and low weight.
A constant voltage and current control circuit perform correction of output voltage deviations due to input voltage or load transients within less than 1.5 ms and permit constant current operation down to continuous short circuit.
A microcontroller unit with two control keys and digital displays on the front panel provide continuous monitoring of input and output voltage, output current, temperature, and offers easy adjustment and programming of output parameters and monitoring thresholds.
An optional CAN-Bus interface allows remote control of output voltage and current from real time transmission of all parameters and measurement values to central supervisory unit (MU1000C).
FEATURES
• Flexible 1/3 x 19’’ system, 6HU
• ”Hot-Plug-In“
• Temperature compensation of the charge voltage
• Frontside connector
• Digital display for output voltage, current and adjustments values
• CAN-Bus interface
