High Voltage Power Supplies
HIGH VOLTAGE POWER SUPPLIES MODEL HV 9000
These high voltage power supplies are frequency modulated resonance converters. They are equipped with an active power factor correction and have a wide input voltage range of 90...264V AC. The output voltage and current can be externally set by means of an external voltage of 0...10V for 0...Vmax. and 0...Amax. The output values of the voltage and current can be preset in standby mode. The units can operate as constant voltage (CV) or constant current (CC) source.
These power supplies are also suitable for charging capacitors in pulsed laser applications for R&D and medical technique at power range from 5W up to 1000W as well as 300J/S and 300V up to 40kV output voltage.
FEATURES
• Output Voltage 300V up to 12kV
• Output Power up to 2000W
• Power factor correction (PFC)
• 19“- rack or bench version
• Mode indications
• External V and A programming
• Remote control IEEE-Bus + RS232, CAN-Bus (Option)
• Overvoltage protection(OVP)
• LCD Display for V and A
• High regulation accuracy
• Short recovery time
• Flashover- and short circuit proof

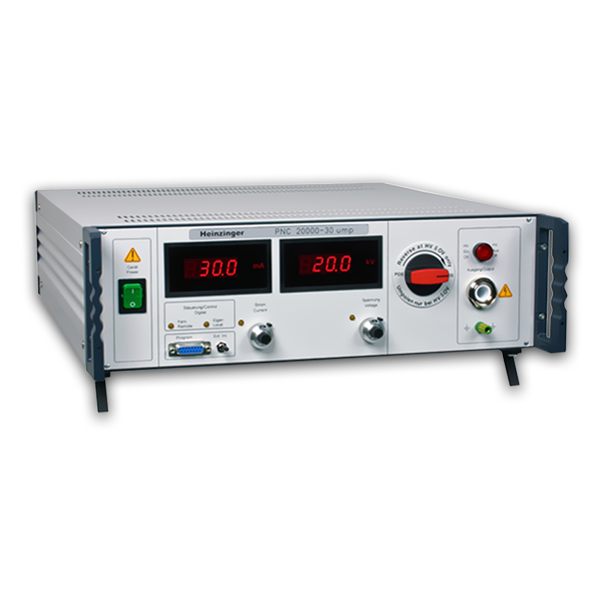

PRECISION-HIGH VOLTAGE POWER SUPPLIES MODEL PNC
Offers precisely controlled DC Voltage at minimum ripple and best long-term stability, using primary switched technology. The product line satisfies highest standards including versions rated up to 300kV. PNC systems up to 6kW and an accuracy of >0.001% are available. High Voltage power supplies model PNCcap are available for charging of capacitors.
FEATURES
• precision switch mode HV power supply
• output voltage up to >300.000 Volt
• output current up to 3.000 mA (high performance see PNC3p)
• residual ripple < 0,01% pp, as PNChp up to 0,001%pp
• stability < 0,01% over 8h
• setting of output voltage with ten-turn potentiometer
• setting of output current with ten-turn potentiometer
• 3.5-digit digital displays for voltage and current, analogue displays on request
• analogue interface
• digital interface available as option
• external HV On/Off via stand-by input
• polarity reversal as option
• sustained short-circuit resistant
APPLICATIONS
• Semiconductor
• Complex plastic- and foil manufacturing
• Medical applications
• R&D laboratories
• Basic research
• Nanotechnology

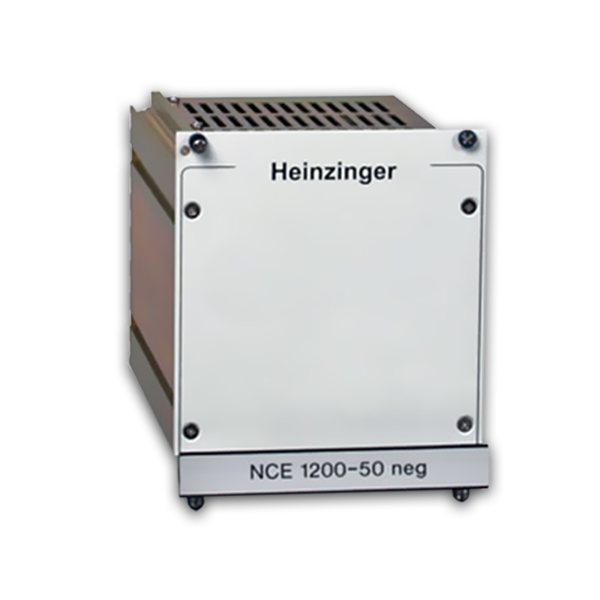

HIGH VOLTAGE CARTRIGE POWER SUPPLIES MODEL NCE
Are primary switched 30W or 60W power supplies. Versions rated up to 30kV and from 1 up to 600mA are available. The high precision power supplies are designed as 19” cartridges and can easily be controlled via 0-10V analogue interface.
FEATURES
• switch mode HV cassette power supply
• output power up to 60 Watt
• output voltage up to 30.000 Volt
• output current up to 600 mA
• residual ripple < 0,1% pp
• stability < 0,1% over 8h
• setting of output voltage via analogue interface
• setting of output current via analogue interface
• analogue interface
• sustained short-circuit resistant
