Solar-Interver Stations

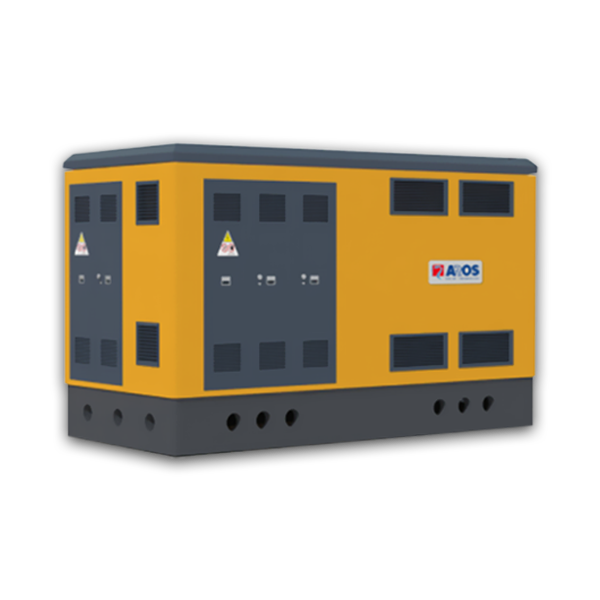

SOLAR-INVERTER SIRIO CS
How to increase the overall efficiency of a conversion system and cut installation costs. This objective can be achieved by using a Sirio Central Station (SCS) system with Sirio Central MV inverters connected to a common medium voltage transformer. The devices are installed in concrete stations to prolong their useful life, improve thermal insulation and to provide resistance to atmospheric agents and the most unfavourable environmental conditions.
AN INTEGRAL SYSTEM FOR LARGE PLANTS
Sirio Central Station is available in 500kW, 750kW and 1MW versions and is a complete, safe and high-performing “Plug& Play” solution. The modular system, which uses inverters housed in separate stations, each with it own MV/LV transformer, enables the inverters to have a barycentric position within the photovoltaic field to optimize installation.
The logic of having separate stations cuts production losses caused by failures and during ordinary and extraordinary maintenance operations. The stations are built in vibrated reinforced concrete, in accordance with the CEI.0-16 standards currently in force, with the Guide for Connections to the Enel Distribuzione Power Grid Ed. 1 December 2008 and with the Enel DG 2092 Construction Specifications Ed. 1 December 2008. The structures are particularly resistant to atmospheric agents since they are treated with special plastic and waterproofing coatings which protect against the formation of cracks and seepages.
The external walls are coated with a quartz/rubber paint with a textured finish to provide optimal resistance to atmospheric agents, even in marine, mountain, industrial or very polluted environments. The normal operating conditions of the installed equipment are guaranteed by a natural ventilation system using air vents thus avoiding recourse to air conditioning systems.
The whole structure is assembled entirely with electromechanical equipment in the factory in accordance with the CEI EN 61330 standard, and electrical equipment where applicable, ready to be placed on site for subsequent start-up.
FEATURES
• High power efficiency of 97%
• High reliablility
• MV transformer and inverters are housed in separate rooms
• High performance "plug&play"-solution
• Easier installation and commissioning
• Modular and compact design
• Output power 500 to 1000kW
